Pièces détachées

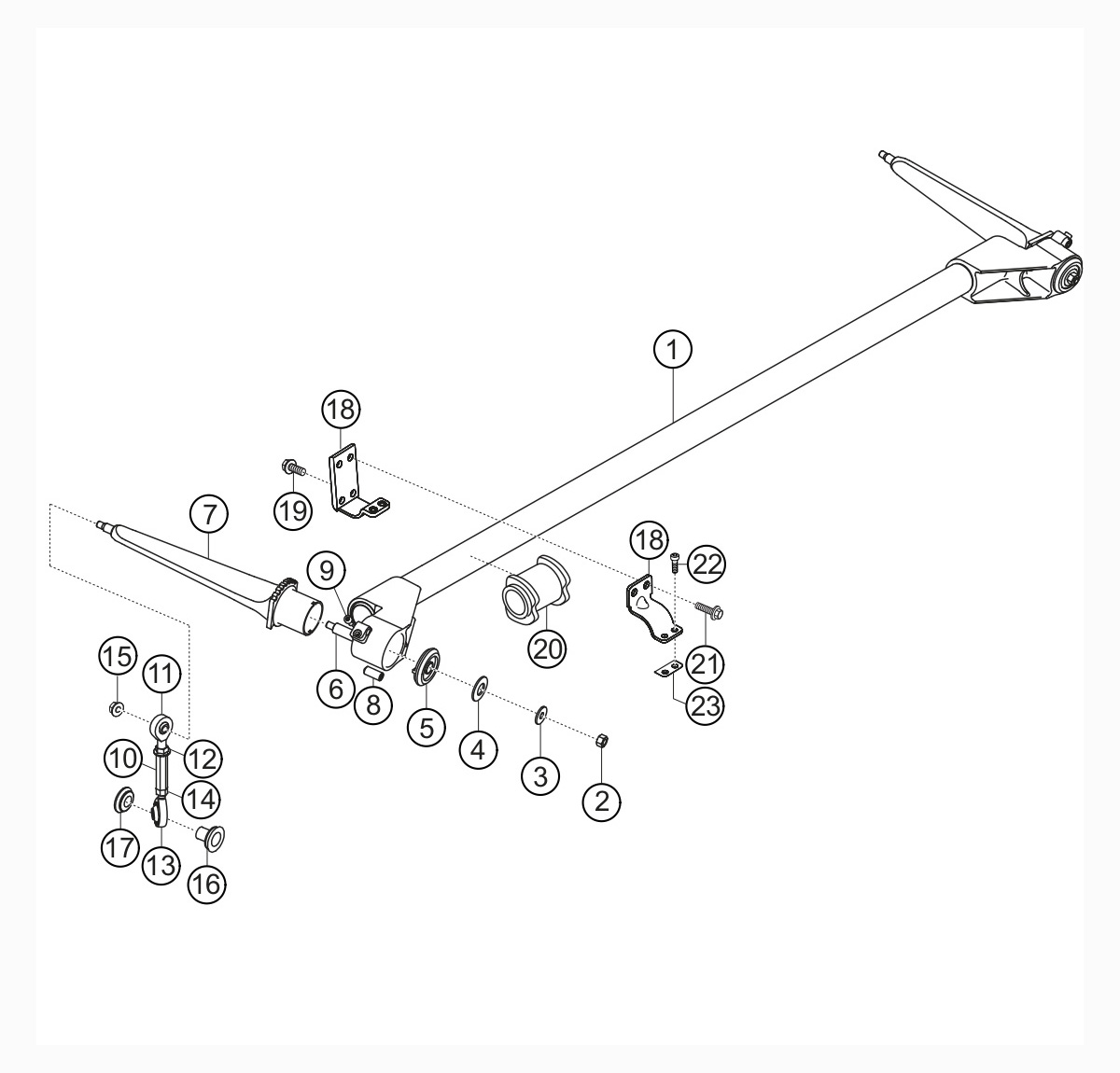

Pos.	Pièce n°.	Description	Qté	Modèle
1	99733317191	anti-roll bar	1	MOTORSPORT
2	90091004709	90091004709 - hex nut M6	2
3	90015100603	90015100603 - disk	2
4	90022202401	disk spring	2	MOTORSPORT
5	9973437239B	cap	2	MOTORSPORT
6	9973437339A	bolt	2	MOTORSPORT
7	99734372591	bending lever	2	MOTORSPORT
8	99924200701	threaded pin M8x18	2	MOTORSPORT
9	90006708003	90006708003 - fillister screw M4x10	2	MOTORSPORT
10	99733307092	roll-bar linkage assembly	2	MOTORSPORT
11	99959302000	swivel head SCP8	1	MOTORSPORT
12	90081701801	hex nut M8 left	1	MOTORSPORT
13	99634153990	swivel head SCP12	1	MOTORSPORT
14	90081702001	hex nut M12	1	MOTORSPORT
15	90081700102	hex nut M6	2	MOTORSPORT
16	99733354590	conical disk long	2	MOTORSPORT
17	99733354390	conical disk short	2	MOTORSPORT
18	99733328592	console for anti roll bar	2	MOTORSPORT
19	90037801701	90037801701 - hex screw M8X20	2
20	99733379292	roll bar bearing	2
21	90037803301	90037803301 - hex screw M8X30	2
22	99921801103	99921801103 - fillister screw M6X12	4
23	99733359590	spacer plate 0,5mm	2	MOTORSPORT
23	99733359591	spacer plate 1,0mm	1	MOTORSPORT

501-030
